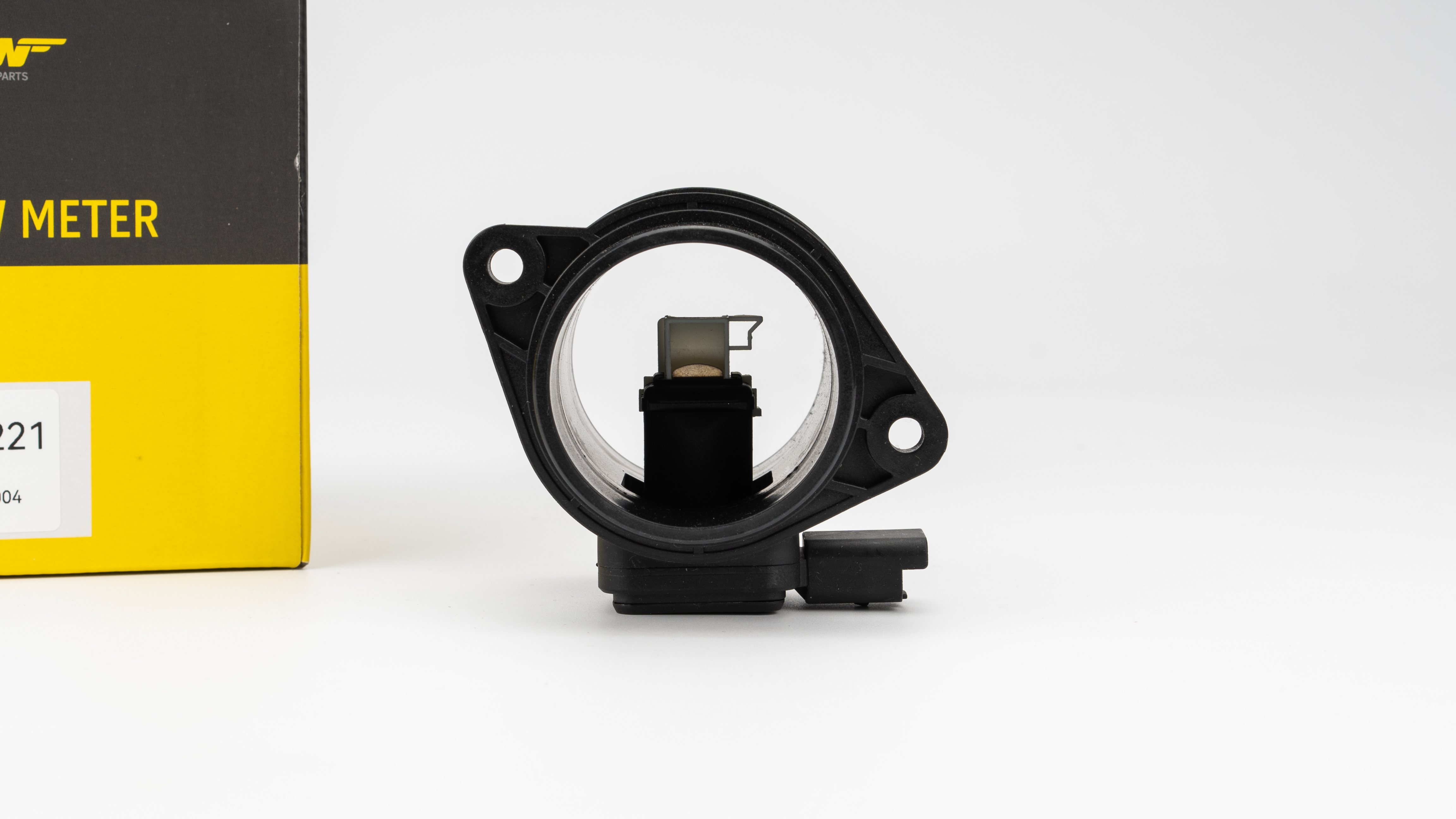

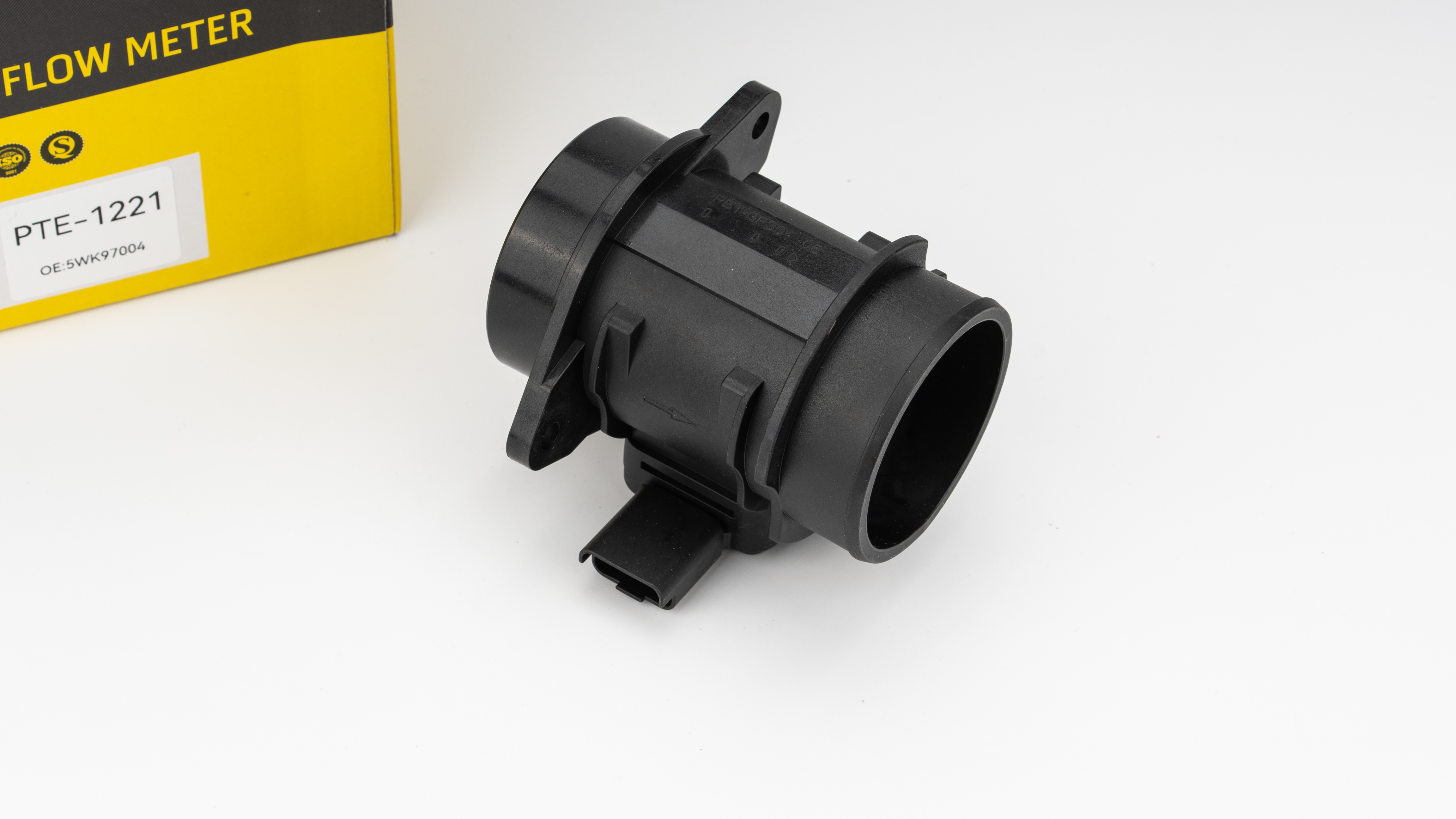

OEM 5WK97004 Car Airflow Sensor For FORD FUSION FIESTA

Car Airflow Sensor 5WK97004 for Peugeot 107 207 1007 Bipper 1.4 HDi/5WK97004Z 8ET009142-111 99647144080 2S6Q12B579BA/BB









Troubleshooting a Car Airflow Sensor

To identify the source of any Car Airflow Sensor faults, consider the following steps:

• ●Conduct an electronic test of the Car Airflow Sensor and read any fault codes using a diagnostic tool.
• ●Check the connector for a correct fit and good contact.
• ●Check the Car Airflow Sensor and measuring elements for damage.
• ●Check the voltage supply with the ignition switched on (circuit diagram for pin assignment is necessary). Ref. value: 7.5-14 V.
• ●Check the output voltage or frequency with the engine running (circuit diagram for pin assignment is necessary). Ref. value: 0.5V resp. 0 – 12.000 Hz.
• ●Check the connection cables between the removed control unit connector and sensor connector for transmission (circuit diagram for pain assignment necessary). Ref. value: approx. 0 ohm.



Specifications

Special Features	Car Airflow Sensor
Country of Origin	‎China
Sensor Type	Air Flow Intake Sensor
Placement on Vehicle	Engine Compartment
Condition	New
Manufacturer Warranty	1 Year
Reference OE/OEM Number	5WK97004 8ET009142-111 7.22184.29.0 1333637 1348615 2S6Q-12B579-BA 2S6Q-12B579-BB 9647144080 1920.GG



Fits Make & Model for the Car Airflow Sensor

For CITROEN C3 I (FC_) 1.4 HDi 8HX (DV4TD) 1398 50KW 68HP Hatchback 2002/02 - /

For CITROEN C3 Pluriel (HB_) 1.4 HDi 8HX (DV4TD) 1398 50KW 68HP Convertible 2004/04 - /

For CITROEN C2 (JM_) 1.4 HDi 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2003/09 - /

For CITROEN C1 (PM_, PN_) 1.4 HDi 8HT (DV4TD) 1398 40KW 54HP Hatchback 2005/06 - /

For CITROEN NEMO Box (AA_) 1.4 HDi 8HS (DV4TED) 1398 50KW 68HP Box 2008/02 - /

For CITROEN NEMO Estate 1.4 HDi 8HS (DV4TED) 1399 50KW 68HP Estate 2009/04 - /

For CITROEN C3 II 1.4 HDi 70 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2009/11 - /

For CITROEN C2 ENTERPRISE 1.4 HDi 8HX (DV4TD) 1398 50KW 68HP Box 2009/04 - /

For FORD FIESTA V (JH_, JD_) 1.4 TDCi F6JB 1399 50KW 68HP Hatchback 2001/11 - 2008/06

For FORD FUSION (JU_) 1.4 TDCi F6JB 1399 50KW 68HP Estate 2002/08 - 2005/07

For FORD FIESTA VI 1.4 TDCi KVJA 1399 51KW 70HP Hatchback 2010/07 - /

For FORD FIESTA VI 1.4 TDCi F6JB 1399 50KW 68HP Hatchback 2009/01 - /

For FORD FIESTA VI Van 1.4 TDCi F6JB 1399 50KW 68HP Box 2009/01 - /

For PEUGEOT 206 Hatchback (2A/C) 1.4 HDi eco 70 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2001/09 - /

For PEUGEOT 206 SW (2E/K) 1.4 HDi 8HX (DV4TD) 1398 50KW 68HP Estate 2002/07 - /

For PEUGEOT 1007 (KM_) 1.4 HDi 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2005/04 - /

For PEUGEOT 107 1.4 HDi 8HT (DV4TD) 1398 40KW 54HP Hatchback 2005/06 - /

For PEUGEOT 207 (WA_, WC_) 1.4 HDi 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2006/02 - /

For PEUGEOT 206 Saloon 1.4 HDi eco 70 8HZ (DV4TD) 1398 50KW 68HP Saloon 2008/09 - /

For PEUGEOT BIPPER (AA_) 1.4 HDi 8HS (DV4TED) 1398 50KW 68HP Box 2008/02 - /

For PEUGEOT BIPPER Tepee 1.4 HDi 8HS (DV4TED) 1398 50KW 68HP Estate 2008/04 - /

For PEUGEOT 207 Van 1.4 HDi 8HZ (DV4TD) 1398 50KW 68HP Box 2007/04 - /

For PEUGEOT 206+ (T3E) 1.4 HDi eco 70 8HZ (DV4TD) 1398 50KW 68HP Hatchback 2009/01 - /

For PEUGEOT 206 Van 1.4 HDi 8HZ (DV4TD) 1398 50KW 68HP Box 2001/09 - 2009/03



Important Note:

PLEASE DOUBLE-CHECK THE PART NUMBER ON YOUR ORIGINAL PART TO AVOID ORDER WRONG PART ACCURATE WAY ONLY .THE LIST OF VEHICLES  IS TO BE USE AS GUIDE ONLY. IF NOT SURE WHETHER THIS WILL FIT YOUR CAR MODEL, CONTACT US SO WE CAN CONFIRM IT FOR YOU.



Product Features

• ●Energy saving and environmental protection: The use of low-power design can effectively save energy.
• ●High-precision measurement for the car airflow sensor: Adopt advanced measurement technology to provide high-precision flow measurement results.
• ●Multiple interfaces and size options: A variety of interfaces and size options are available to suit different application requirements.
• ●Reliability and stability: It is usually manufactured with high-quality materials and processes, with good reliability and stability.
• ●Fast response time: The car airflow sensor is able to detect and respond to changes in air flow in real time. The sensor can provide accurate data and maintain stable system operation.
